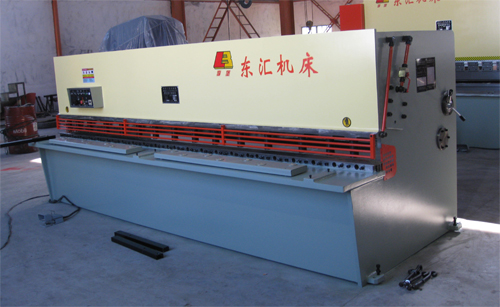

QC12Y系列数控液压摆式剪板机
性能与特点：
- 多工步数控后挡料
- 可编程剪切次数
- 可编程剪切宽度
- 预先规划整个板材
- 用自动剪切功能剪切整张板料
- 合一系统保证机器动作可靠，最大限度消除故障隐患
- 可供用户选择用：1、E20-SM经济型 2、DAC 350闸式剪切角、剪程、DD间隙可调 3、DAC 250单轴控制，相对编程。
技术参数：
|
规格型号 |
剪板尺寸 |
剪切角 |
空行程次数 (次/分)(Time/min) |
后档料架调节范围 (mm) |
主电机功率(KW) |
外形尺寸 |
|
QC12Y-4×2500 |
4×2500 |
1 o 30' |
≥18 |
20-600 |
5.5 |
3120×1460×1500 |
|
QC12Y-4×3200 |
4×3200 |
1 o 30' |
≥14 |
20-600 |
5.5 |
3820×1720×1620 |
|
QC12Y-4×4000 |
4×4000 |
1 o 30' |
≥10 |
20-600 |
5.5 |
4620×1850×1700 |
|
QC12Y-4×5000 |
4×5000 |
1 o 30' |
≥10 |
20-600 |
7.5 |
5786×2200×2160 |
|
QC12Y-6×2500 |
6×2500 |
1 o 30' |
≥18 |
20-600 |
7.5 |
3140×1540×1570 |
|
QC12Y-6×3200 |
6×3200 |
1 o 30' |
≥14 |
20-600 |
7.5 |
3840×1660×1620 |
|
QC12Y-6×4000 |
6×4000 |
1 o 30' |
≥10 |
20-600 |
7.5 |
4645×1850×1700 |
|
QC12Y-6×5000 |
6×5000 |
1 o 30' |
≥10 |
20-750 |
11 |
5786×2200×2160 |
|
QC12Y-6×6000 |
6×6000 |
1 o 30' |
≥7 |
20-800 |
15 |
6900×2570×2280 |
|
QC12Y-8×2500 |
8×2500 |
1 o 30' |
≥14 |
20-600 |
11 |
3140×1540×1570 |
|
QC12Y-8×3200 |
8×3200 |
1 o 30' |
≥10 |
20-600 |
11 |
3840×1660×1620 |
|
QC12Y-8×4000 |
8×4000 |
1 o 30' |
≥8 |
20-600 |
11 |
4664×1880×1720 |
|
QC12Y-8×5000 |
8×5000 |
1 o 30' |
≥7 |
20-600 |
15 |
5786×2252×2310 |
|
QC12Y-8×6000 |
8×6000 |
1 o 30' |
≥5 |
20-600 |
15 |
6900×2570×2280 |
|
QC12Y-10×2500 |
10×2500 |
1 o 40' |
≥11 |
20-800 |
15 |
3205×2000×1890 |
|
QC12Y-10×3200 |
10×3200 |
1 o 40' |
≥10 |
20-800 |
15 |
3905×2000×1890 |
|
QC12Y-10×4000 |
10×4000 |
1 o 40' |
≥8 |
20-800 |
18.5 |
4705×2150×2000 |
|
QC12Y-12×2500 |
12×2500 |
1 o 40' |
≥11 |
20-800 |
18.5 |
3245×2042×1900 |
|
QC12Y-12×3200 |
12×3200 |
1 o 40' |
≥10 |
20-800 |
18.5 |
3945×2042×1900 |
|
QC12Y-12×4000 |
12×4000 |
1 o 40' |
≥8 |
20-800 |
18.5 |
4745×2192×2050 |
|
QC12Y-16×2500 |
16×2500 |
2 o 20' |
≥8 |
25-800 |
18.5 |
3245×2180×2000 |
|
QC12Y-16×3200 |
16×3200 |
2 o 20' |
≥7 |
25-800 |
18.5 |
3945×2477×2035 |
|
QC12Y-16×4000 |
16×4000 |
2 o 20' |
≥5 |
30-800 |
18.5 |
4850×2350×2300 |
|
QC12Y-20×2500 |
20×2500 |
2 o 40' |
≥6 |
20-800 |
30 |
3260×2452×2000 |
|
QC12Y-20×3200 |
20×3200 |
2 o 40' |
≥5 |
30-800 |
30 |
4150×2450×2300 |
|
QC12Y-20×4000 |
20×4000 |
2 o 40' |
≥4 |
30-800 |
37 |
4855×2600×2400 |
|
QC12Y-20×5000 |
20×5000 |
2 o 40' |
≥4 |
20-800 |
37 |
5900×3000×3300 |
|
QC12Y-25×2500 |
25×2500 |
3 o |
≥5 |
40-800 |
37 |
3500×2500×2360 |
|
QC12Y-25×3200 |
25×3200 |
3 o |
≥4 |
40-1000 |
37 |
4200×2500×2400 |
